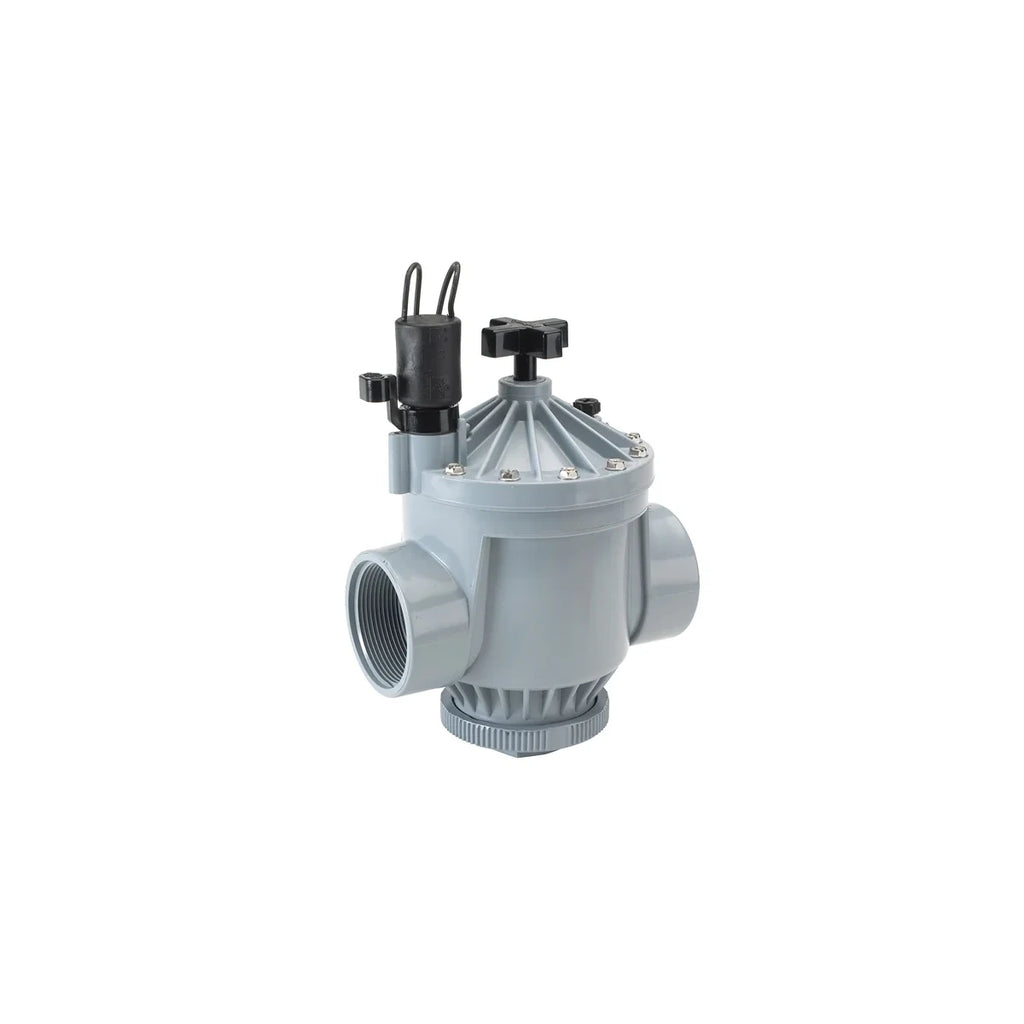

Irritrol 216B-M-60 200B Series Commercial Valve, 1-1/2 in BSP Female Thread, Flow Control, 24 VAC 60 Hz — image 2

Irritrol 216B-M-60 200B Series Commercial Valve, 1-1/2 in BSP Female Thread, Flow Control, 24 VAC 60 Hz

Irritrol

Valves 200B Series Commercial Valves

Irritrol 216B-M-60 200B Series Commercial Valve, 1-1/2 in BSP Female Thread, Flow Control, 24 VAC 60 Hz

SKU: 216B-M-60

Model: 216B

Warranty 2 years

Dhs. 235.00

In stock

Product summary

The Irritrol 216B-M-60 is a 200B Series commercial globe/angle solenoid valve configured with 1-1/2 in BSP female-thread inlet/outlet connections, flow control, and a 24 VAC, 60 Hz solenoid. The 200B family is designed for dependable commercial irrigation service, using heavy-duty UV-resistant PVC, stainless steel hardware, manual internal and external bleed, and a slow-closing design that helps reduce water hammer.

Key features

200B Series commercial globe/angle valve
1-1/2 in BSP female-thread inlet and outlet
Independent flow control
24 VAC, 60 Hz solenoid
Heavy-duty corrosion- and UV-resistant PVC construction
Stainless steel hardware
Internal and external manual bleed
Slow-closing design helps reduce water hammer
Double-beaded Santoprene diaphragm
Captive solenoid plunger
Accepts optional OmniReg modular pressure regulator

Quick specifications

Valve size: approximately 40 mm / 1-1/2 in
Connection type: BSP female thread
Thread standard: BSP
Flow: 5–120 GPM
Flow control: Yes

Complete technical details

Regional SKU: 216B-M-60
Base Model: 216B
Series: Irritrol 200B Series
Nominal Valve Size: 1-1/2 in / approximately 40 mm
Connection: BSP female thread
Valve Configuration: globe/angle
Flow Control: included
Family Flow Range: 5–120 GPM
Solenoid: 24 VAC, 60 Hz
Inrush Current: approximately 0.4 A
Holding Current: approximately 0.2 A
Inrush Load: 24 VAC, approximately 9.6 VA
Holding Load: 24 VAC, approximately 4.8 VA
Approximate Dimensions: 7.75 in H x 4.25 in W x 5.5 in L
Construction: heavy-duty PVC with stainless steel hardware
Optional Pressure Regulation: accepts compatible OmniReg regulator

Best used for

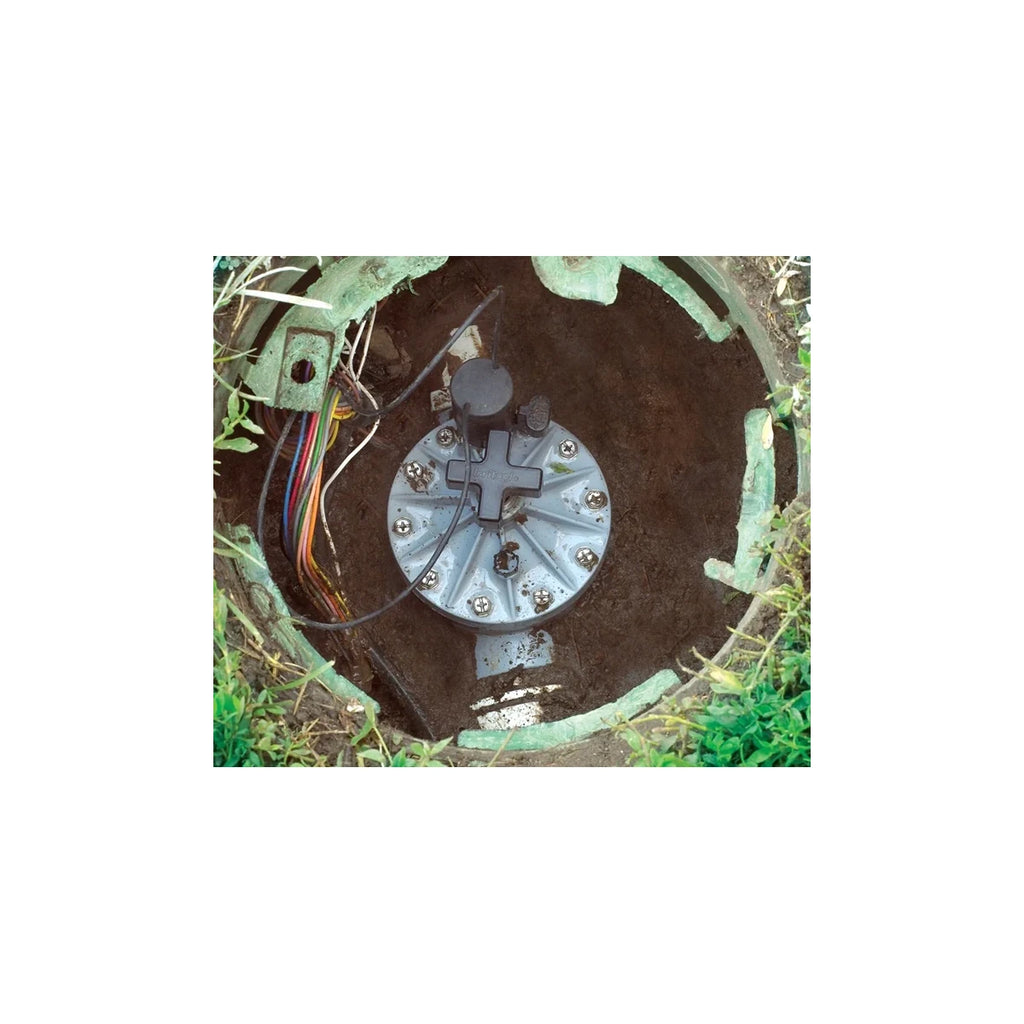

Commercial irrigation valve stations
Larger landscape irrigation zones
Systems requiring flow control
Projects specifying BSP female-thread connections
Installations using 24 VAC, 60 Hz control systems

Compatibility and notes

Confirm controller voltage and frequency before installation.
Use compatible BSP fittings and follow current Irritrol installation instructions.
