Irritrol 217B-M-60 200B Series Commercial Solenoid Valve, 2 in BSP Female Thread, with Flow Control

Irritrol

Valves 200B Series Commercial Valves

Irritrol 217B-M-60 200B Series Commercial Solenoid Valve, 2 in BSP Female Thread, with Flow Control

Name: Irritrol 217B-M-60 200B Series Commercial Solenoid Valve, 2 in BSP Female Thread, with Flow Control
Brand: Irritrol
SKU: 217B-M-60
Price: 299.00 AED
Availability: InStock

SKU: 217B-M-60

Model: 217B

Warranty 2 years

Dhs. 299.00

In stock

Product summary

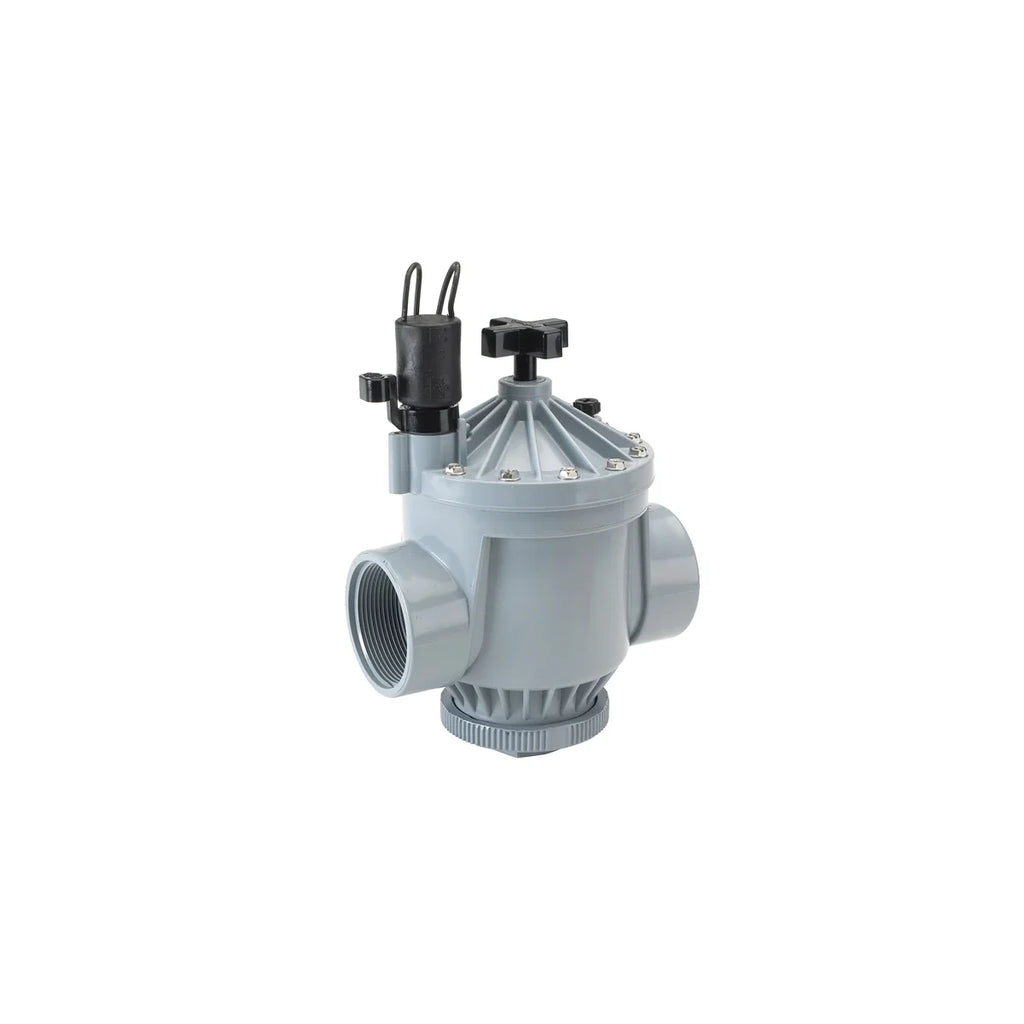

The Irritrol 217B-M-60 is a 200B Series commercial globe/angle solenoid valve with flow control. It is configured as a 2 in BSP female-thread valve. The 200B family is built for commercial irrigation systems and is known for heavy-duty PVC construction, stainless steel hardware, internal and external bleed, and a slow-closing design that helps reduce water hammer.

Key features

200B Series commercial globe/angle valve
2 in BSP female thread
Flow control included
Heavy-duty corrosion- and UV-resistant PVC construction
Stainless steel hardware
Internal and external bleed for manual operation and flushing
Slow-closing design helps reduce water hammer
Rugged double-beaded Santoprene diaphragm
Captive solenoid plunger
Accepts OmniReg modular pressure regulator where compatible

Quick specifications

Valve size: 2 in
Connection type: BSP female thread
Thread standard: BSP
Flow: 5 to 120 GPM
Flow control: Yes

Complete technical details

Base Model: 217B
Regional SKU: 217B-M-60
Valve Size: 2 in
Connection: BSP female thread
Valve Style: globe/angle
Flow Control: yes
Family Flow Range: 5 to 120 GPM
Solenoid: 24 VAC
Inrush Current: 0.4 amp
Holding Current: 0.2 amp
Inrush Volt-Amp: 24 VAC, 9.6 VA
Holding Volt-Amp: 24 VAC, 4.8 VA
Approximate Dimensions for 217B: approximately 8-3/4 in H x 5-1/4 in W x 6-1/4 in L
