Rain Bird 200PGA PGA Globe/Angle Valve, 2 in, Plastic, with Flow Control

Rain Bird

Valves PGA Valves

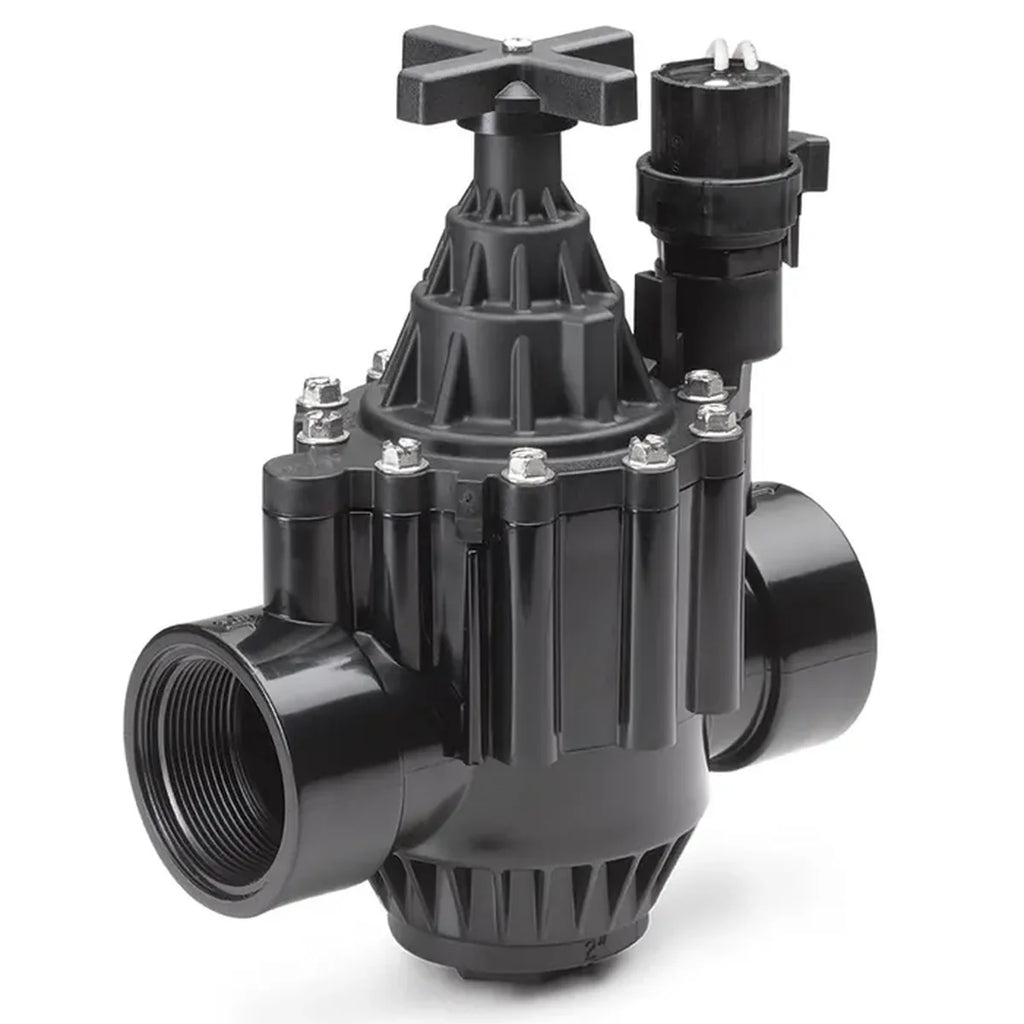

Rain Bird 200PGA PGA Globe/Angle Valve, 2 in, Plastic, with Flow Control

Name: Rain Bird 200PGA PGA Globe/Angle Valve, 2 in, Plastic, with Flow Control
Brand: Rain Bird
SKU: B30510
Price: 279.00 AED
Availability: InStock

SKU: B30510

Model: 200PGA

Warranty 2 years

Dhs. 279.00

In stock

Product summary

A durable 2 in PGA Series irrigation valve for residential and light commercial systems requiring higher flow capacity, adjustable flow control, and optional pressure regulation.

Key features

Watertight body-to-bonnet seal
Rugged PVC and glass-filled nylon construction

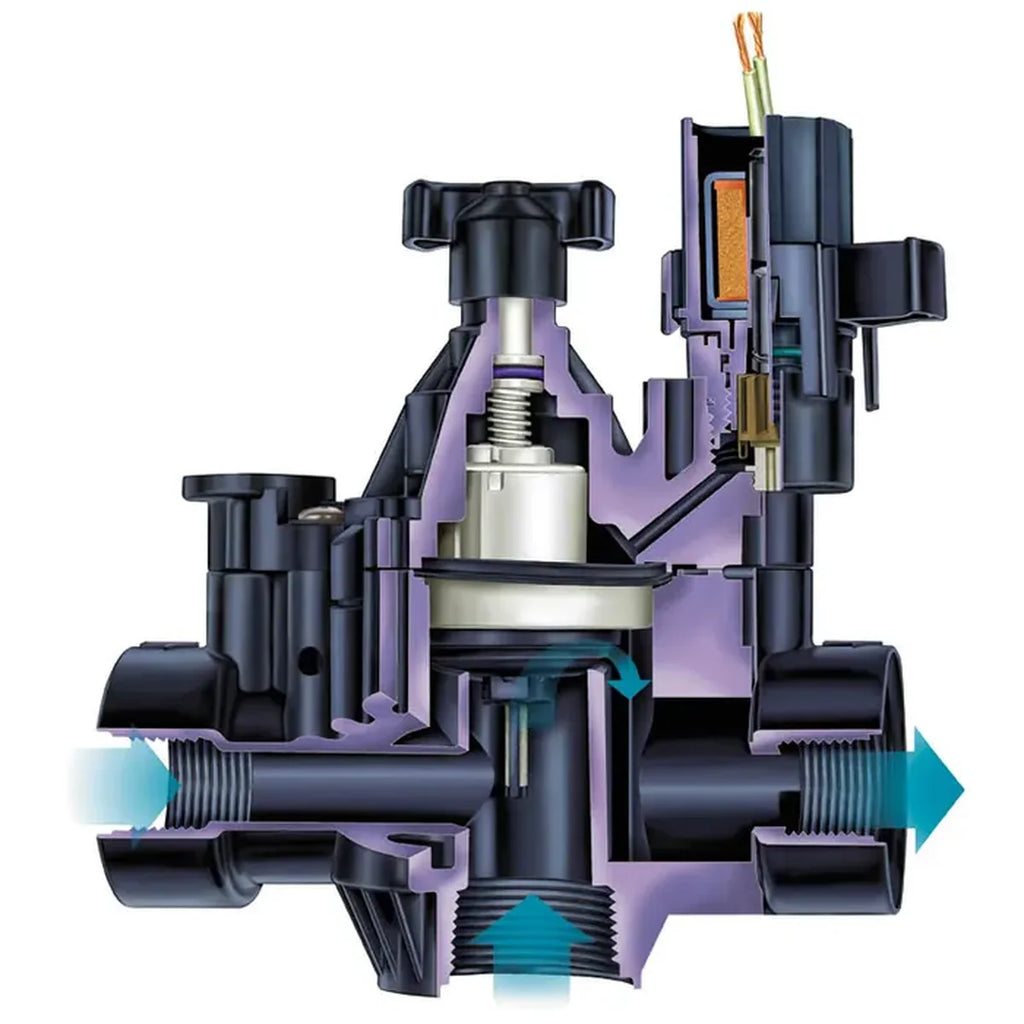

Normally closed, forward-flow design
Filtered pilot flow helps resist debris and clogging
Slow-closing operation helps reduce water hammer
One-piece solenoid with captured plunger and spring
Non-rising flow-control handle
Manual internal bleed
Globe/angle installation flexibility within the PGA design
Accepts optional PRS-D pressure-regulating dial
Accepts a latching solenoid for compatible Rain Bird battery-operated controllers
Optional non-potable-water flow-control handle available

Quick specifications

Connection size: 50 mm (2 in)
Connection type: NPT Female x NPT Female Threaded
Thread standard: NPT

Complete technical details

SKU: B30510
Manufacturer Model: 200PGA
Brand: Rain Bird
Valve Series: PGA
Valve Size: 50 mm (2 in)
Valve Type: Inline
Material: Plastic
Connection: NPT Female x NPT Female Threaded
Valve Options: Multi-drive screws; non-potable option available
Operating Pressure: 1.0 to 10.4 bar (15 to 150 psi)
Maximum Water Temperature: 43°C (110°F)
Flow Range without PRS-D: 0.5 to 34 m³/h (2 to 150 GPM)
Flow Range with PRS-D: 1 to 34 m³/h (5 to 150 GPM)
Solenoid: 24 VAC, 50/60 Hz
Inrush Current: 0.41 A (9.9 VA)
Holding Current: 0.14 A (3.43 VA)
Coil Resistance: 30–39 ohms
Dimensions: 184 × 140 × 83 mm (7-1/4 × 5-1/2 × 3-1/4 in)

Best used for

Residential and light commercial irrigation
Higher-flow valve manifolds
Systems requiring adjustable flow control
Systems using optional PRS-D pressure regulation

Compatibility and notes

Use compatible 50 mm (2 in) NPT female-threaded connections.
Match controller output to the 24 VAC solenoid.
A compatible latching solenoid can be used with Rain Bird battery-operated controllers.
Solenoid handle is not included.
