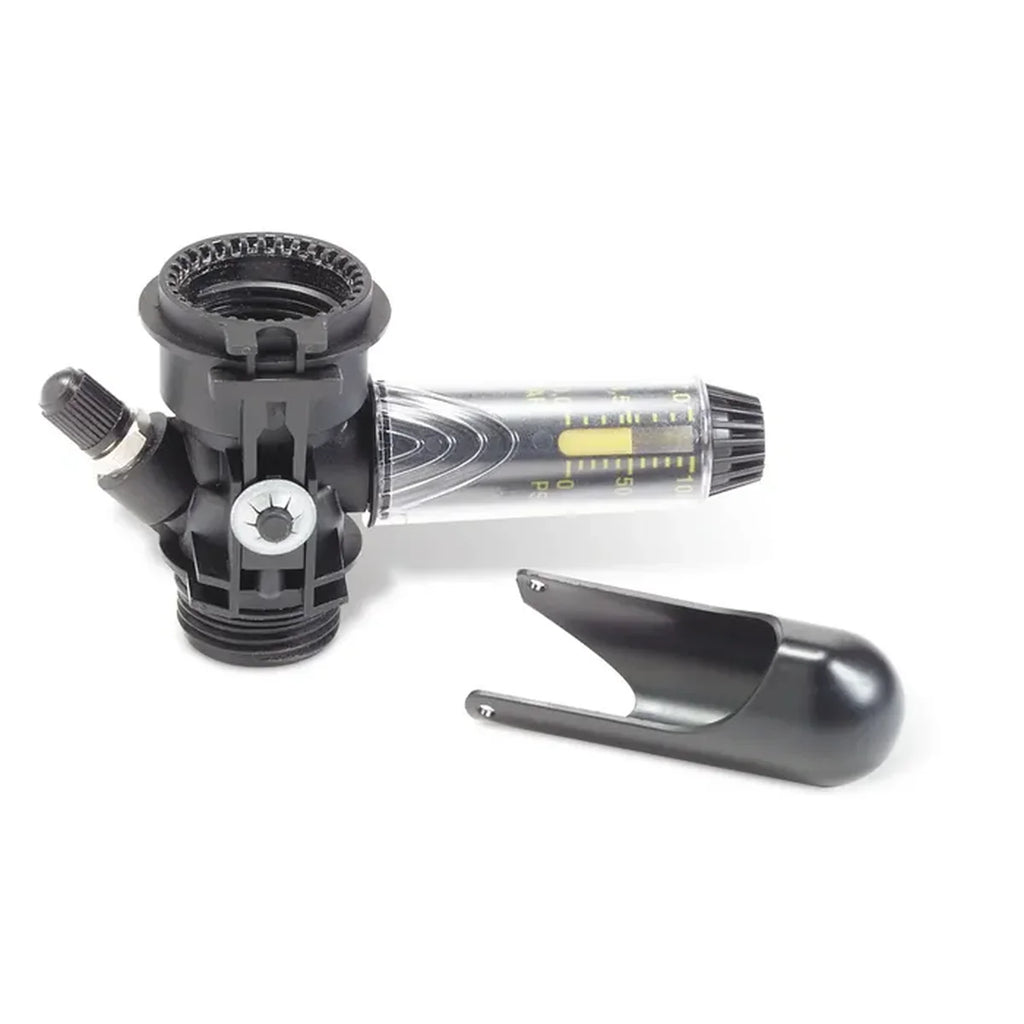

Rain Bird PRSDIAL PRS-Dial Pressure Regulator, 15-100 PSI

Rain Bird

Valves Valve Accessories

Rain Bird PRSDIAL PRS-Dial Pressure Regulator, 15-100 PSI

Name: Rain Bird PRSDIAL PRS-Dial Pressure Regulator, 15-100 PSI
Brand: Rain Bird
SKU: B33135
Price: 165.00 AED
Availability: InStock

SKU: B33135

Model: PRSDIAL

Warranty 2 years

Dhs. 165.00

In stock

Product summary

The PRSDIAL regulates downstream valve pressure from 15 to 100 psi on compatible Rain Bird commercial valve families.

Key features

Adjustable downstream pressure regulation from 15 to 100 psi
Visible pressure-setting scale
Improved pressure-spike reduction to help reduce water hammer
Waterproof dial cartridge resists fogging and binding
Snap-tight cover helps deter tampering
Dial cartridge retrofits into existing PRS-B units
Schrader valve connection for a pressure gauge hose
Field-installable design

Complete technical details

SKU: B33135
Manufacturer Model: PRSDIAL
Regulated Outlet Pressure: 1.0 to 6.9 bar (15 to 100 psi)
Maximum Operating Pressure: 6.9 bar (100 psi)
Maximum Water Temperature: 66°C (150°F)
Required Inlet Differential: minimum 15 psi above desired outlet pressure

Best used for

Pressure regulation on compatible Rain Bird commercial valves
Commercial irrigation zones requiring controlled downstream pressure
PRS-B retrofit installations

Compatibility and notes

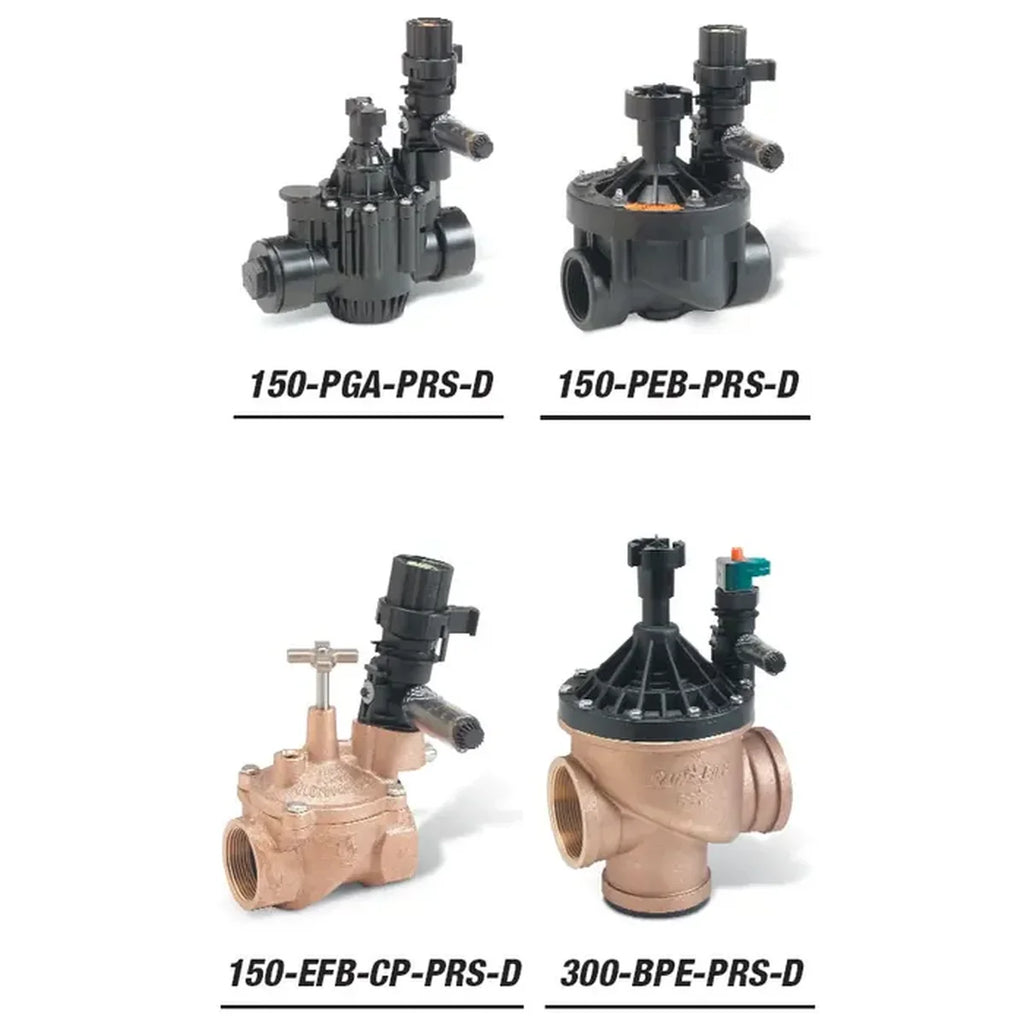

Fits Rain Bird PGA, PEB, PESB, PESB-R, GB-R, EFB-CP-R, BPE and BPES series valves.
When inlet pressure exceeds 100 psi, use a regulating master valve or inline pressure regulator upstream.
For flows below 5 GPM, upstream filtration is recommended; for flows below 10 GPM, reduce the valve flow-control opening from fully open.
