Rain Bird ESP4ME3EUR ESP-ME3 4-Station Indoor/Outdoor Controller, 230 VAC, International

Rain Bird

Controllers & Timers ESP-ME3 Controllers

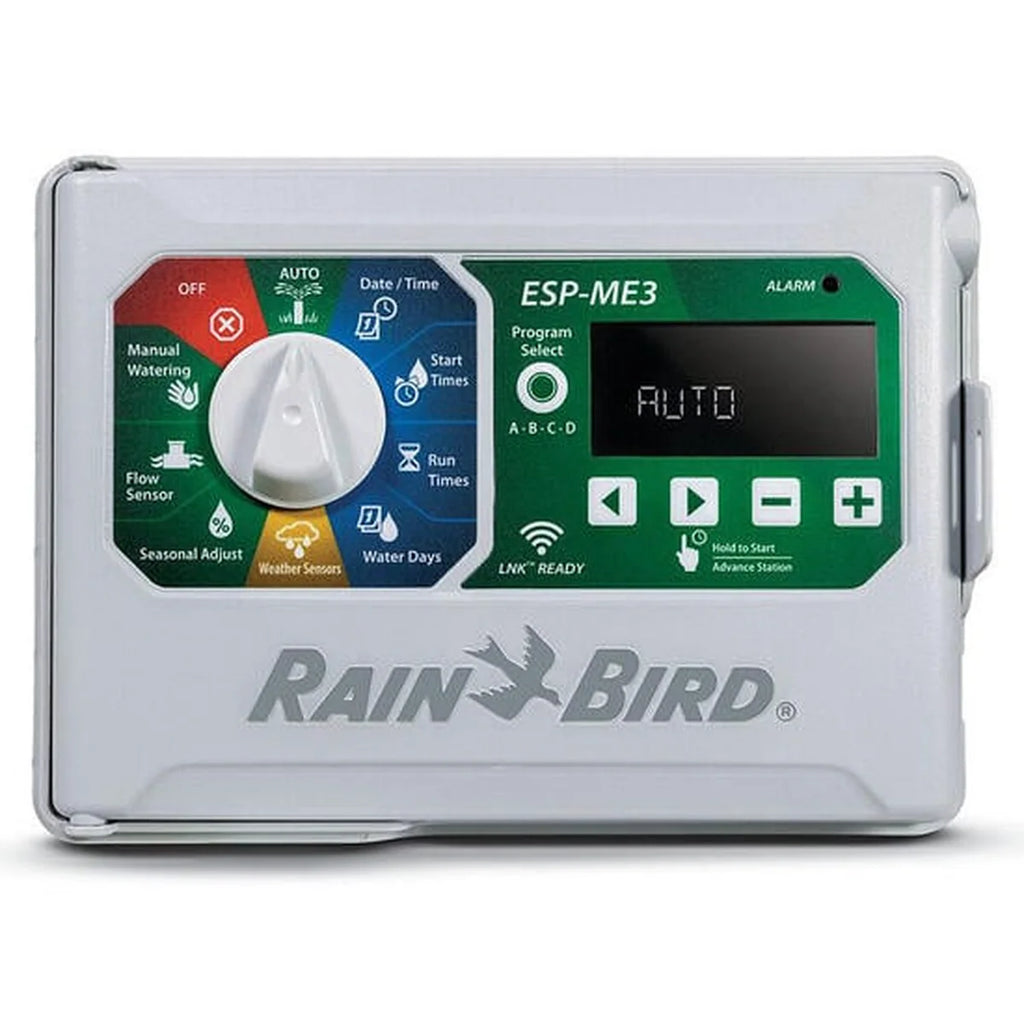

Rain Bird ESP4ME3EUR ESP-ME3 4-Station Indoor/Outdoor Controller, 230 VAC, International

Name: Rain Bird ESP4ME3EUR ESP-ME3 4-Station Indoor/Outdoor Controller, 230 VAC, International
Brand: Rain Bird
SKU: ESP4ME3EUR
Price: 430.00 AED
Availability: InStock

SKU: ESP4ME3EUR

Warranty 2 years

Dhs. 430.00

In stock

Product summary

The ESP4ME3EUR is a 230 VAC international ESP-ME3 controller with four base stations, indoor/outdoor installation, and expansion up to 22 stations.

Key features

Four-station base controller expandable to 22 stations

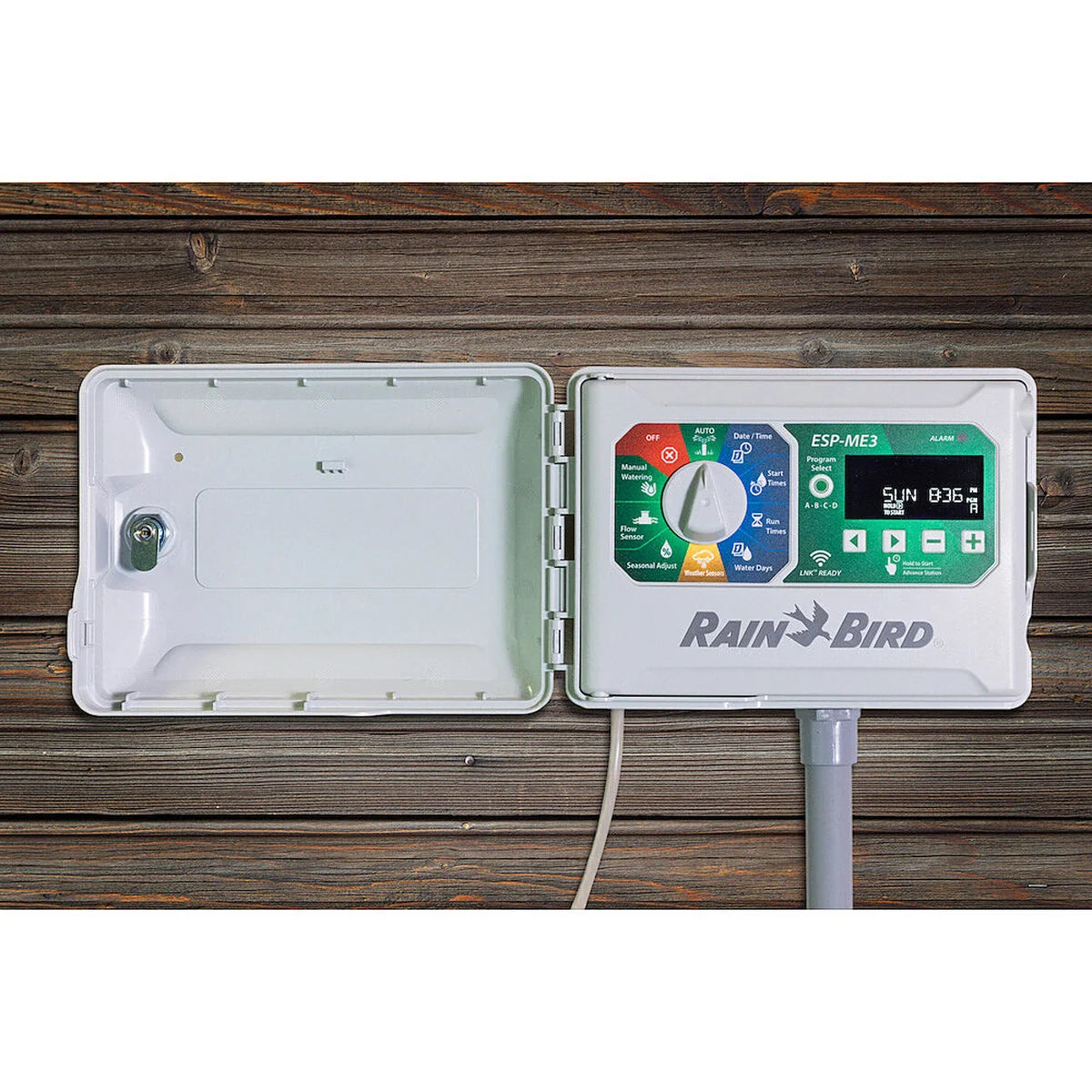

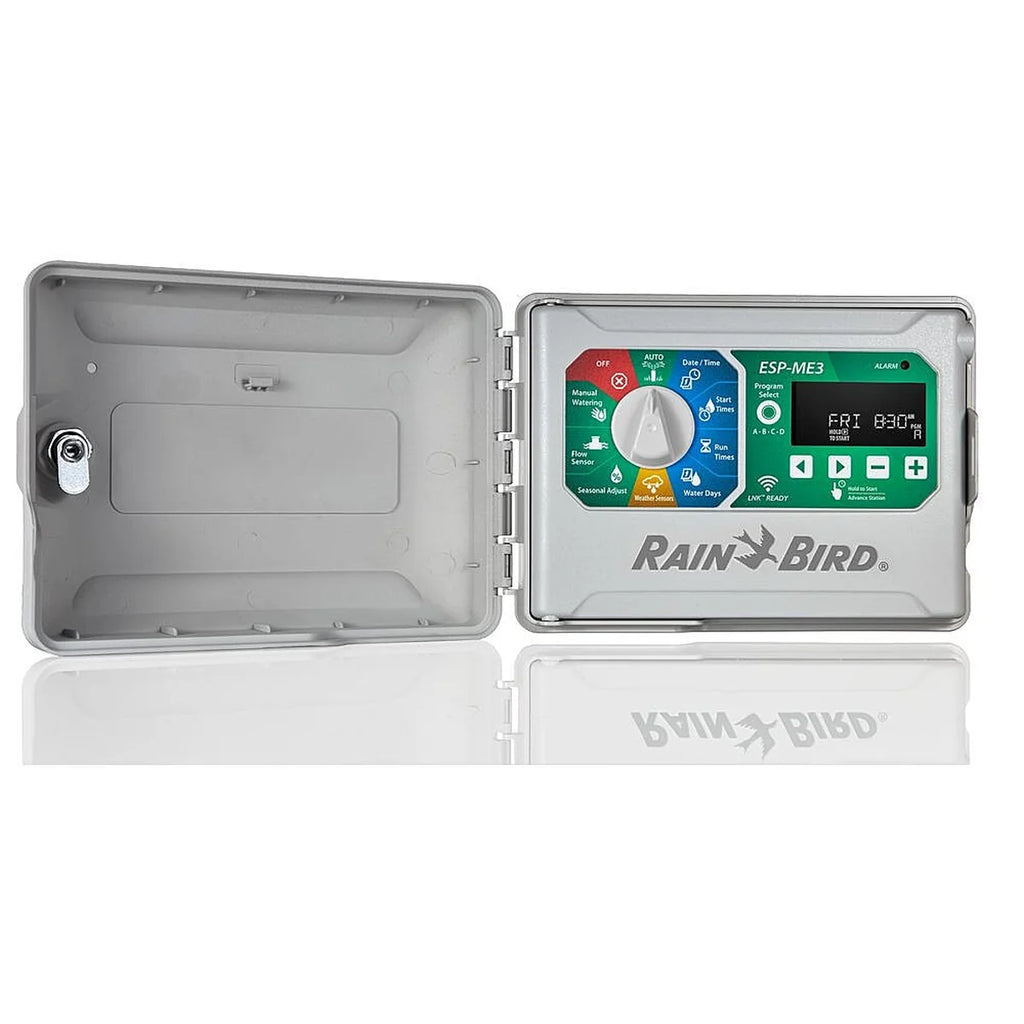

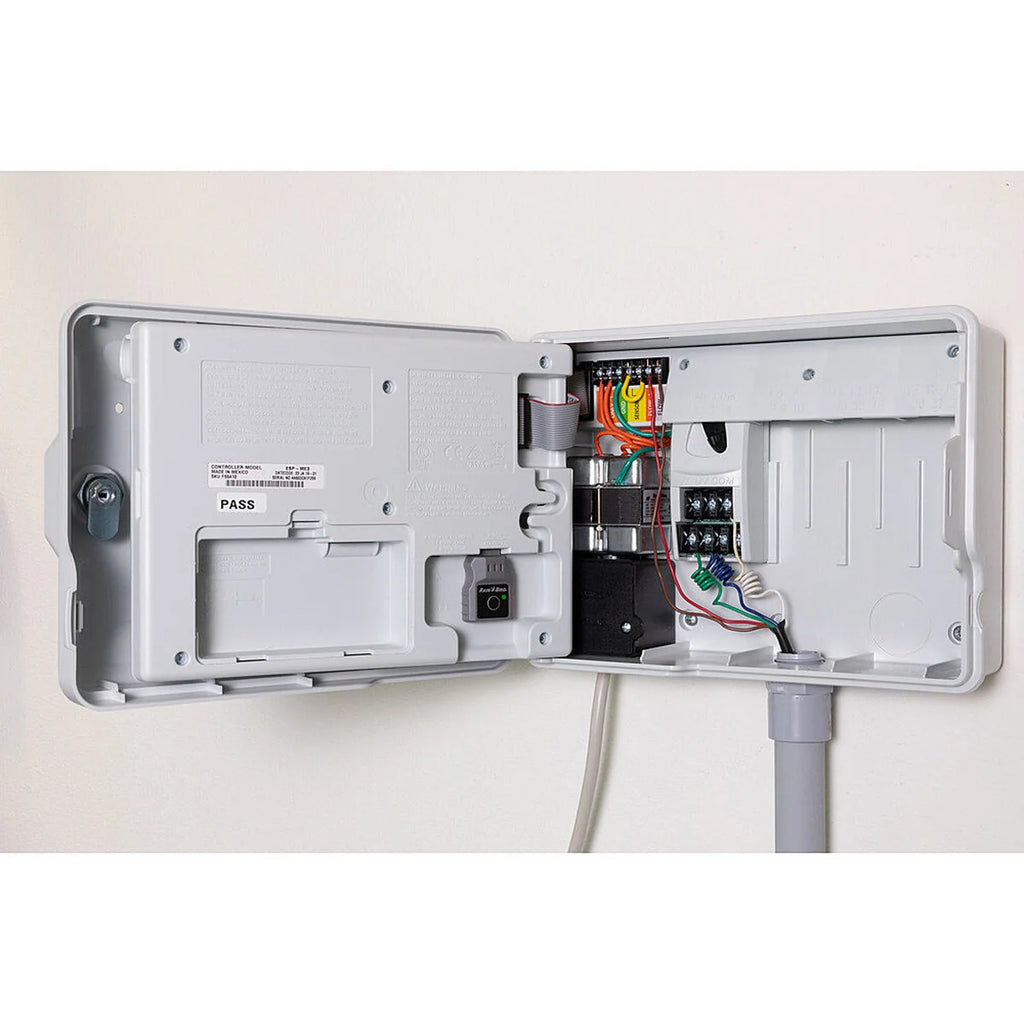

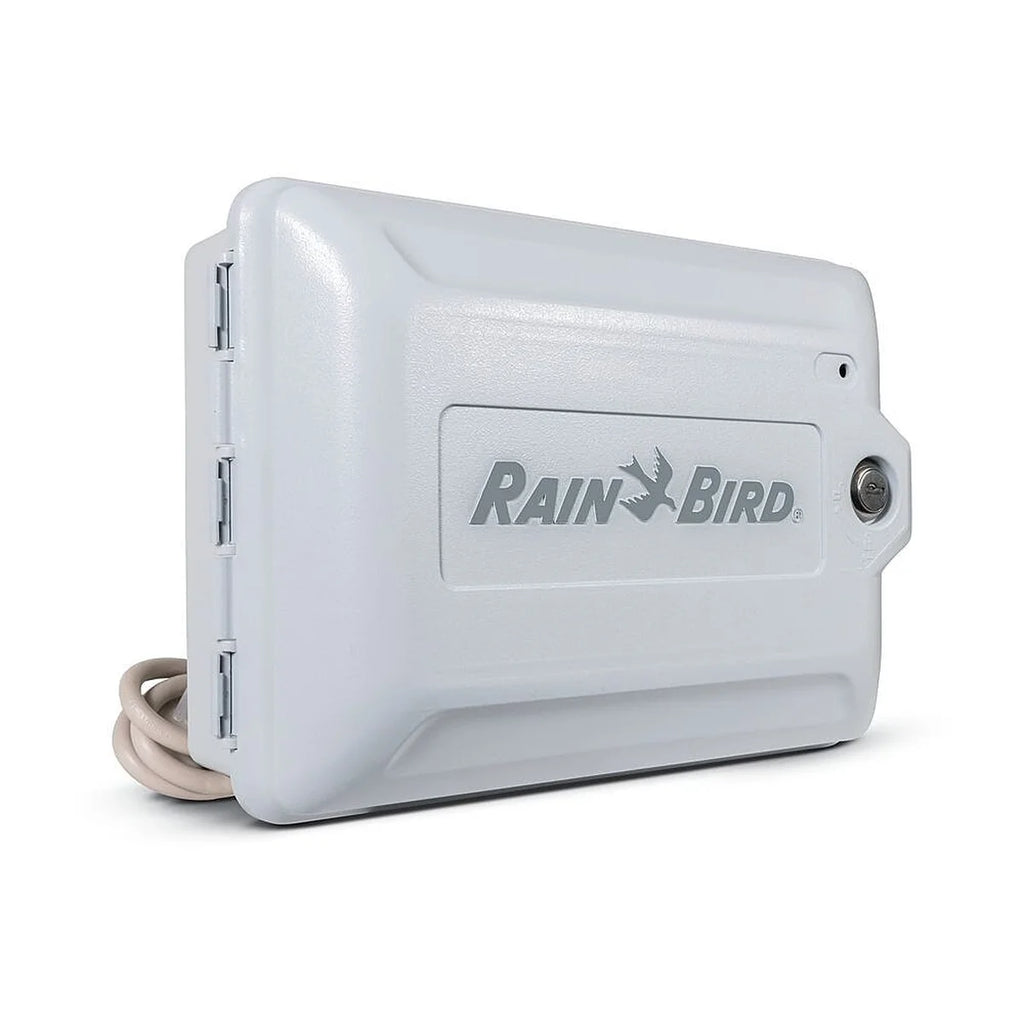

Indoor/outdoor enclosure

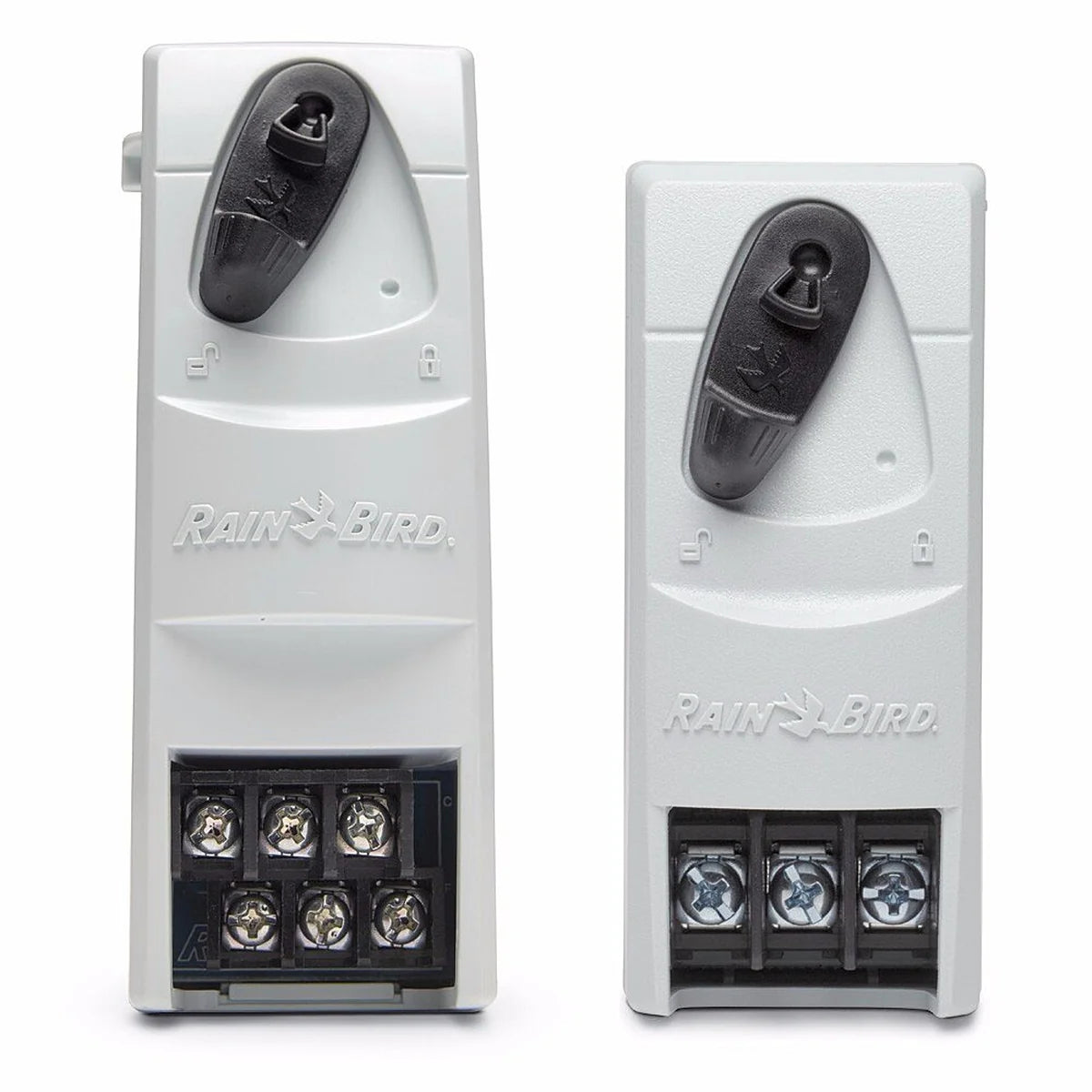

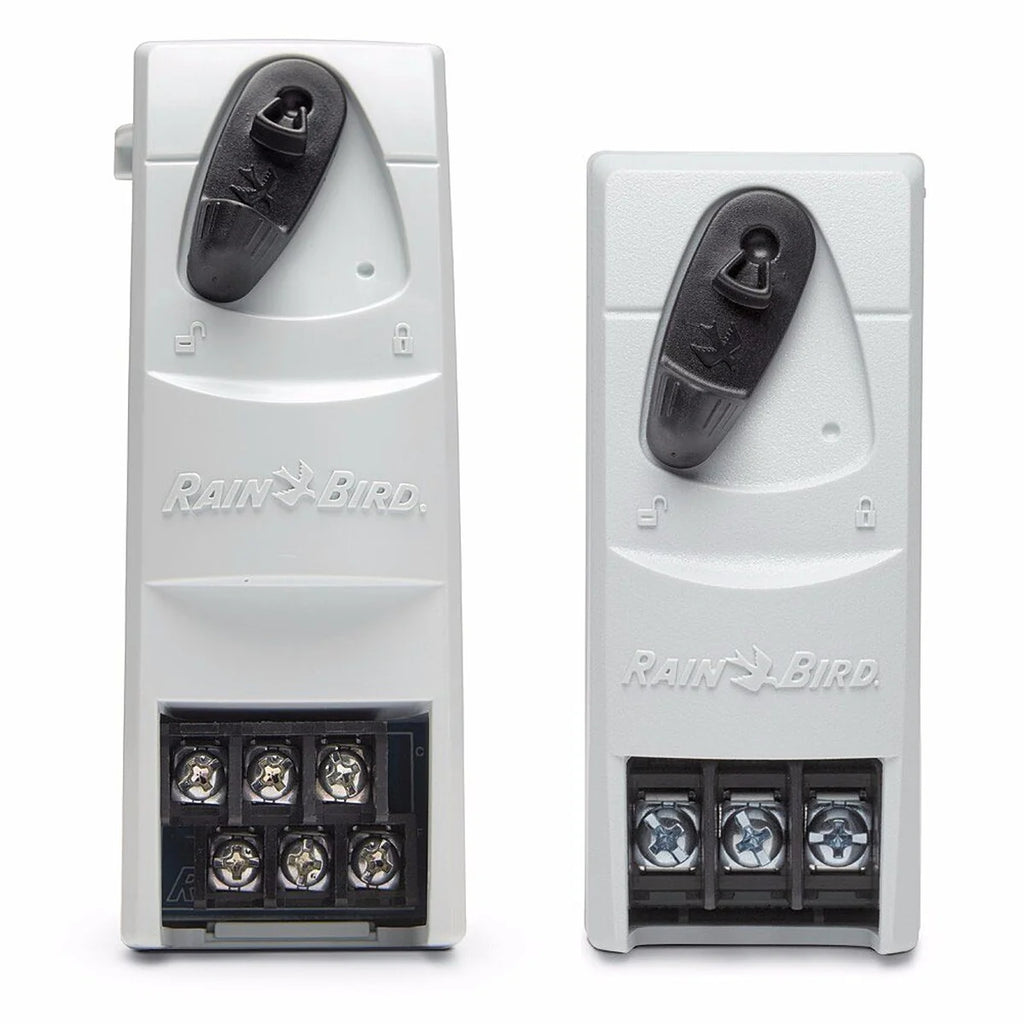

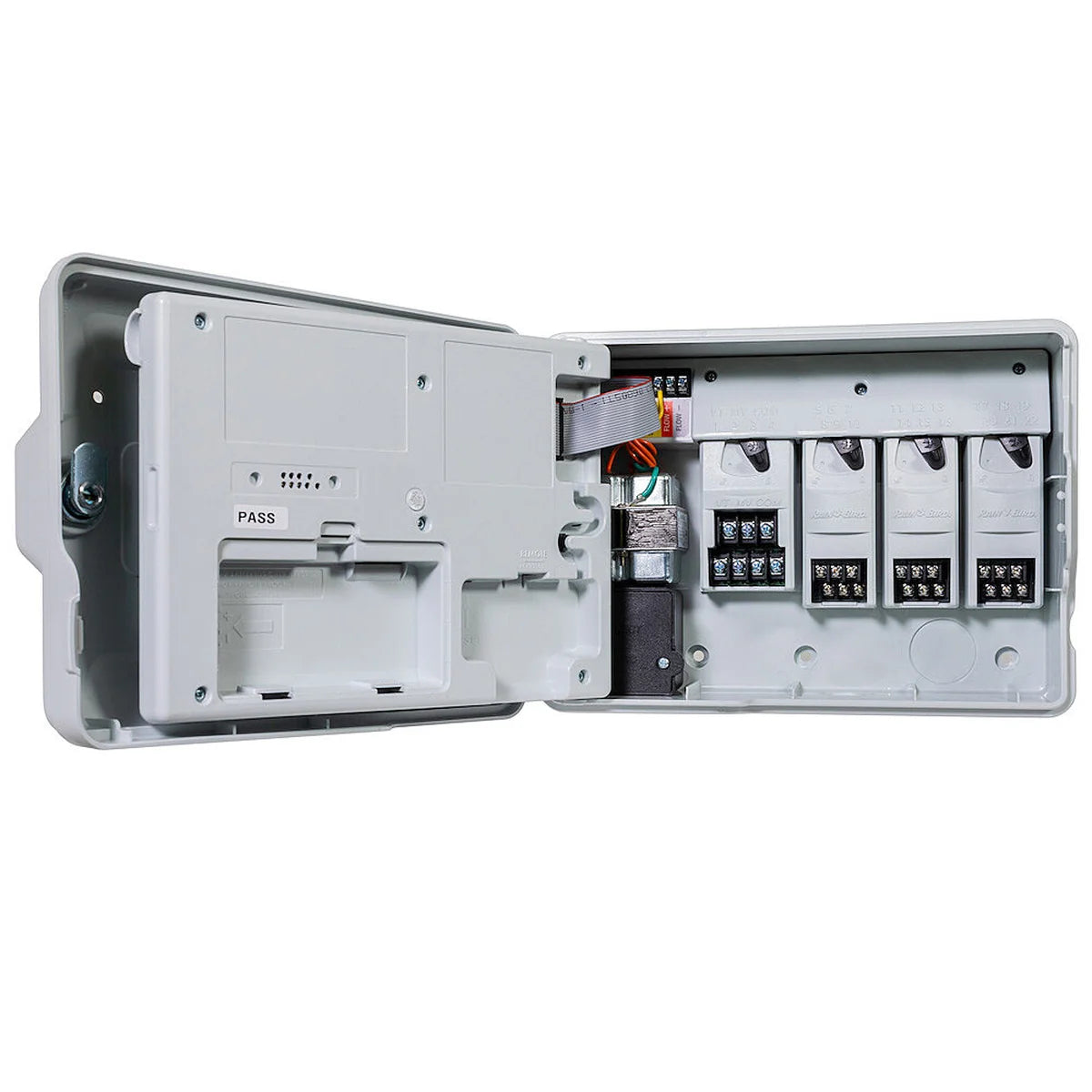

Hot-swappable 3- and 6-station expansion modules
Optional LNK2 WiFi remote monitoring and control
Built-in flow-sensing capability with compatible flow sensor

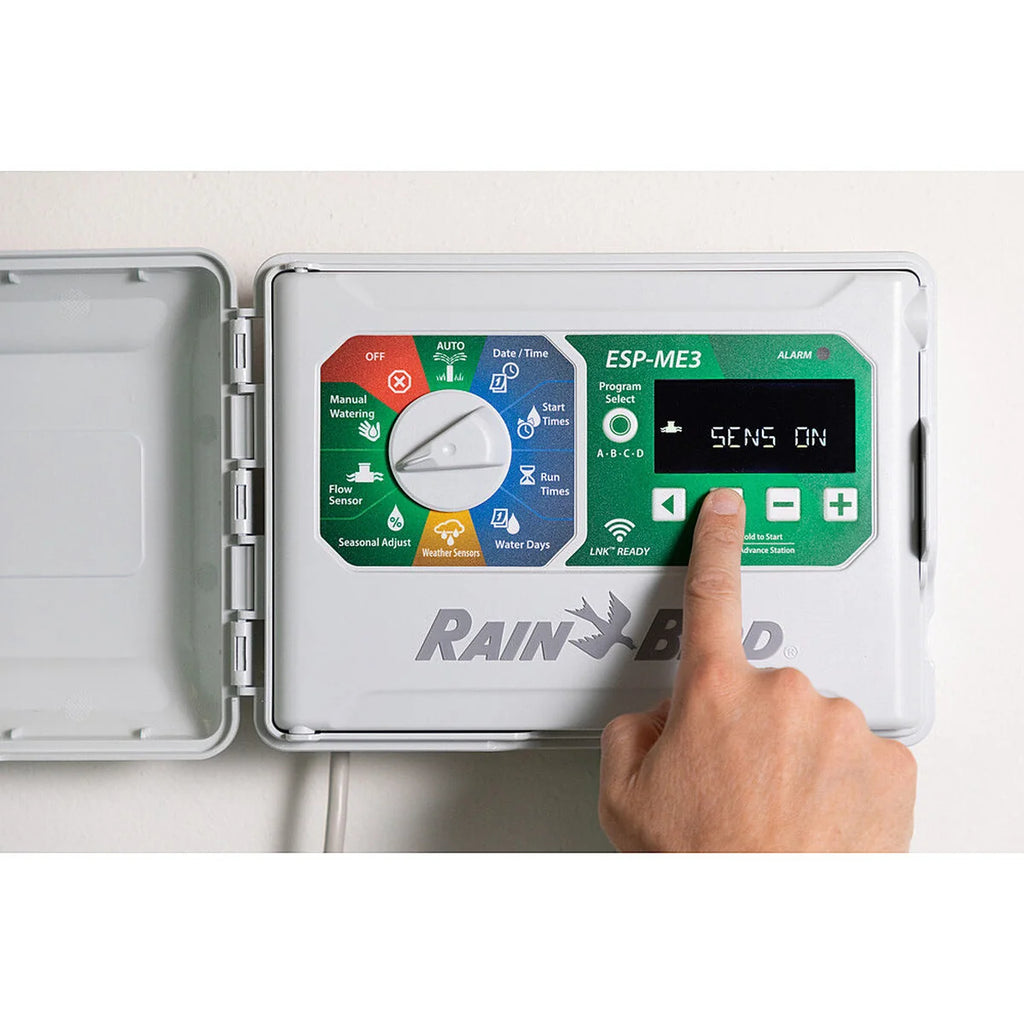

Backlit LCD display
Four programs with six start times per program
Contractor Default save/restore
Rain-sensor bypass by station
Delay watering up to 14 days
Advanced diagnostics and short detection
Master valve/pump-start control

Quick specifications

Voltage: 24 VAC

Complete technical details

SKU: ESP4ME3EUR
Manufacturer Model: ESP4ME3EUR
Base Stations: 4
Maximum Stations: 22
Input Power: 230 VAC, 50-60 Hz, 0.136 A
Output: 24 VAC, 50-60 Hz, 1.0 A
Station Run Time: 1 minute to 6 hours
Seasonal Adjustment: 5% to 200%
Master Valve/Pump Start: 24 VAC 50/60 Hz; 11 VA max inrush; 5 VA max holding
Dimensions: 272 x 195 x 112 mm (10.7 x 7.7 x 4.4 in)
Certifications / Rating: CE, IP24 and other market-specific approvals
Clock Backup: 10-year lithium battery; programming stored in nonvolatile memory

Best used for

Residential and light-commercial irrigation
International 230 VAC installations
Systems requiring future station expansion, WiFi or flow monitoring

Compatibility and notes

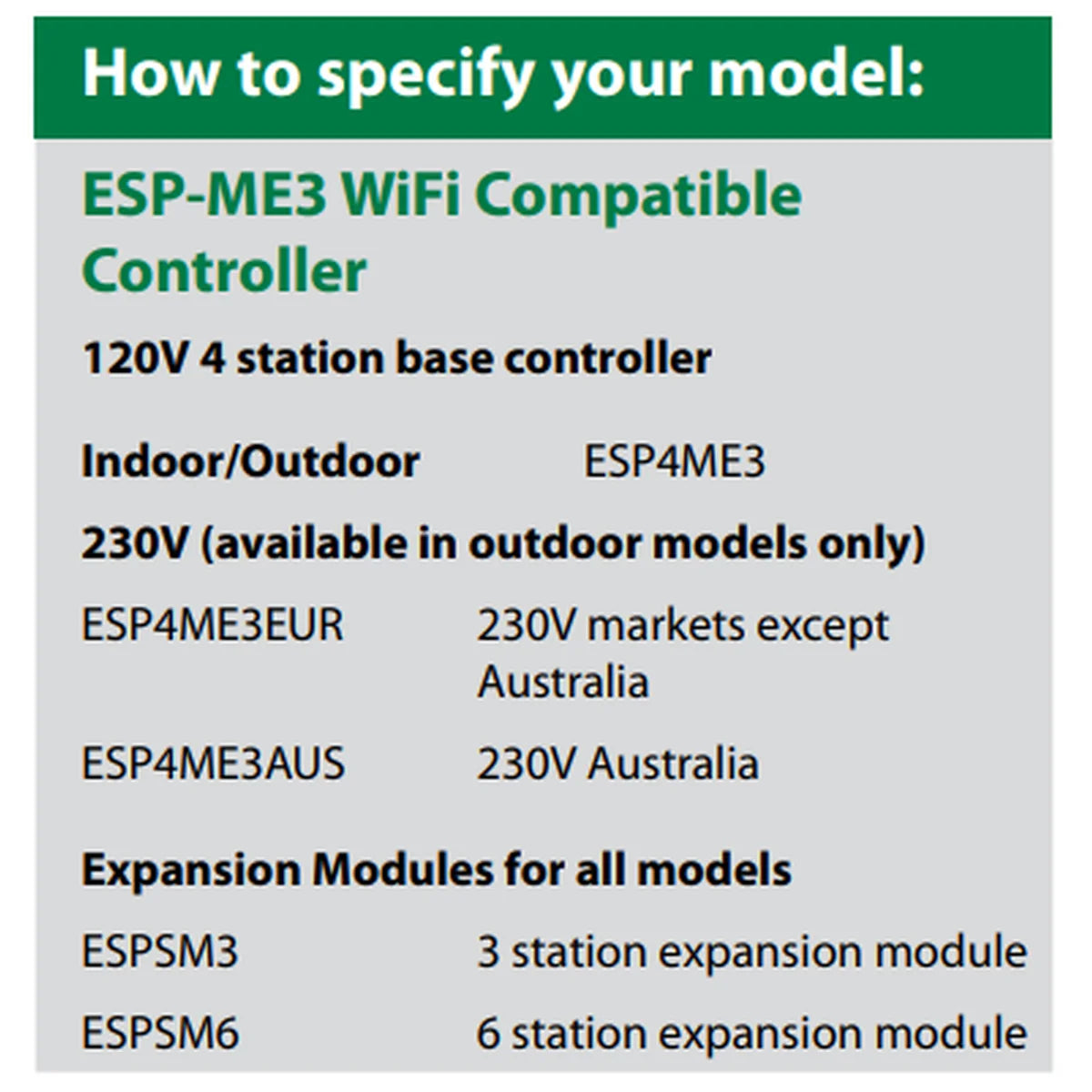

Expand with compatible 3- and 6-station Rain Bird modules.
LNK2 WiFi Module, rain sensor and flow sensor are optional accessories unless separately included.
