Rain Bird IESP8LXME ESP-LXME 8-Station Controller, 230 VAC, International

Rain Bird

Controllers & Timers ESP-LXME Controllers

Rain Bird IESP8LXME ESP-LXME 8-Station Controller, 230 VAC, International

Name: Rain Bird IESP8LXME ESP-LXME 8-Station Controller, 230 VAC, International
Brand: Rain Bird
SKU: IESP8LXME
Price: 1099.00 AED
Availability: InStock

SKU: IESP8LXME

Warranty 2 years

Dhs. 1,099.00

In stock

Product summary

The IESP8LXME is an eight-station international 230 VAC ESP-LXME controller expandable to 48 stations for commercial irrigation systems.

Key features

Eight-station base controller expandable to 48 stations

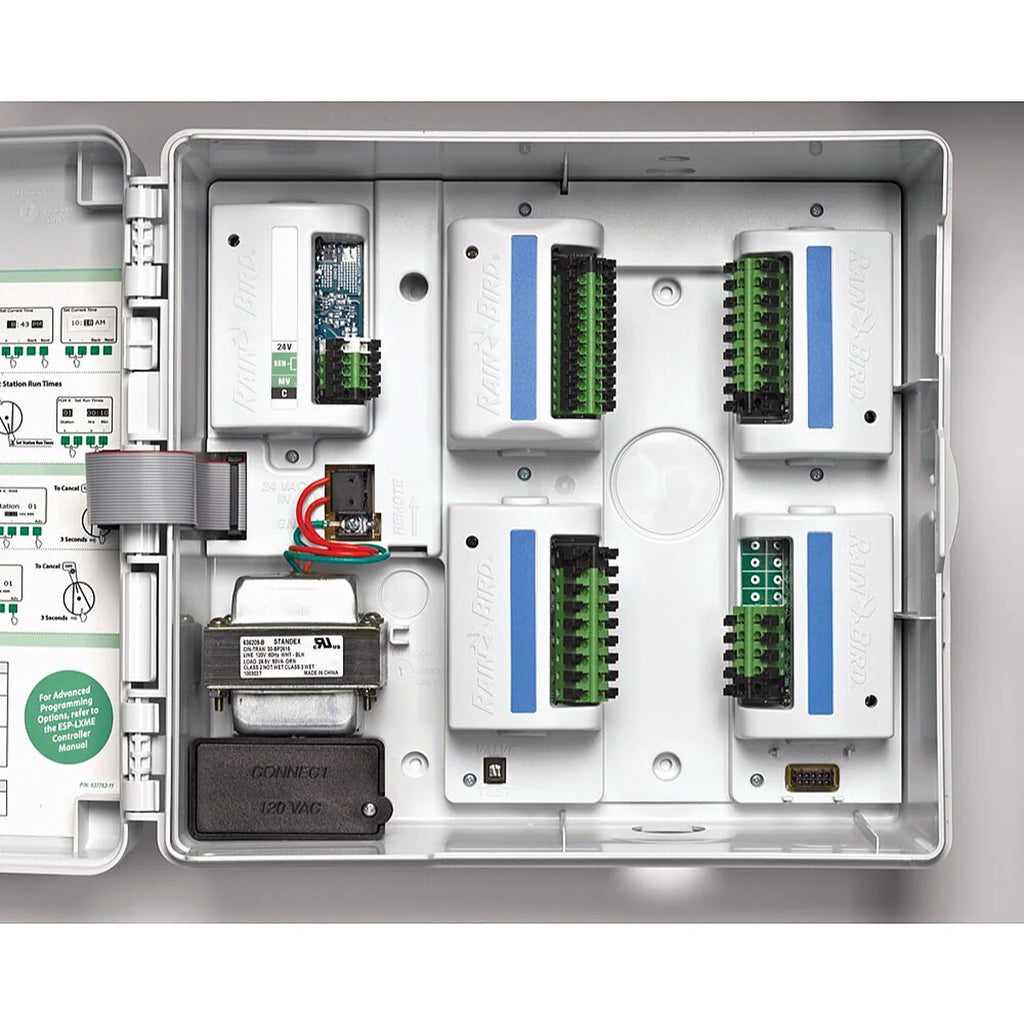

Hot-swappable 8- and 12-station modules
Dynamic station numbering
Master valve/pump-start circuit
Weather-sensor input with override
Six user-selectable languages
Standard 10 kV surge protection
Nonvolatile 100-year program memory
Removable front panel programmable under battery power
Optional Flow Smart Module with Learn Flow, FloWatch and FloManager functions
Up to five simultaneous stations through SimulStations
Four independent programs with eight start times per program

Quick specifications

Voltage: 26.5 VAC

Complete technical details

SKU: IESP8LXME
Manufacturer Model: IESP8LXME
Base Stations: 8
Maximum Stations: 48
Input Power: 230 VAC ±10%, 50/60 Hz
Output: 26.5 VAC, 1.9 A
Station Run Time: 0 minutes to 12 hours
Seasonal Adjustment: 0% to 300%
Programs: 4 independent programs
Start Times: 8 per program
Multi-Valve Capacity: maximum five 24 VAC, 7 VA solenoids simultaneously including master valve; maximum two solenoids per station
Dimensions: 364 x 322 x 140 mm (14.32 x 12.69 x 5.50 in)
Enclosure Rating: IPX4

Best used for

Commercial irrigation systems
International 230 VAC installations
Sites requiring modular station expansion and optional flow management

Compatibility and notes

Compatible with ESP-LXME/F 8- and 12-station expansion modules.
ESP-LXME is a legacy platform; current ESP-LXME2 controllers use 12-station modules rather than the older 8-station module.
