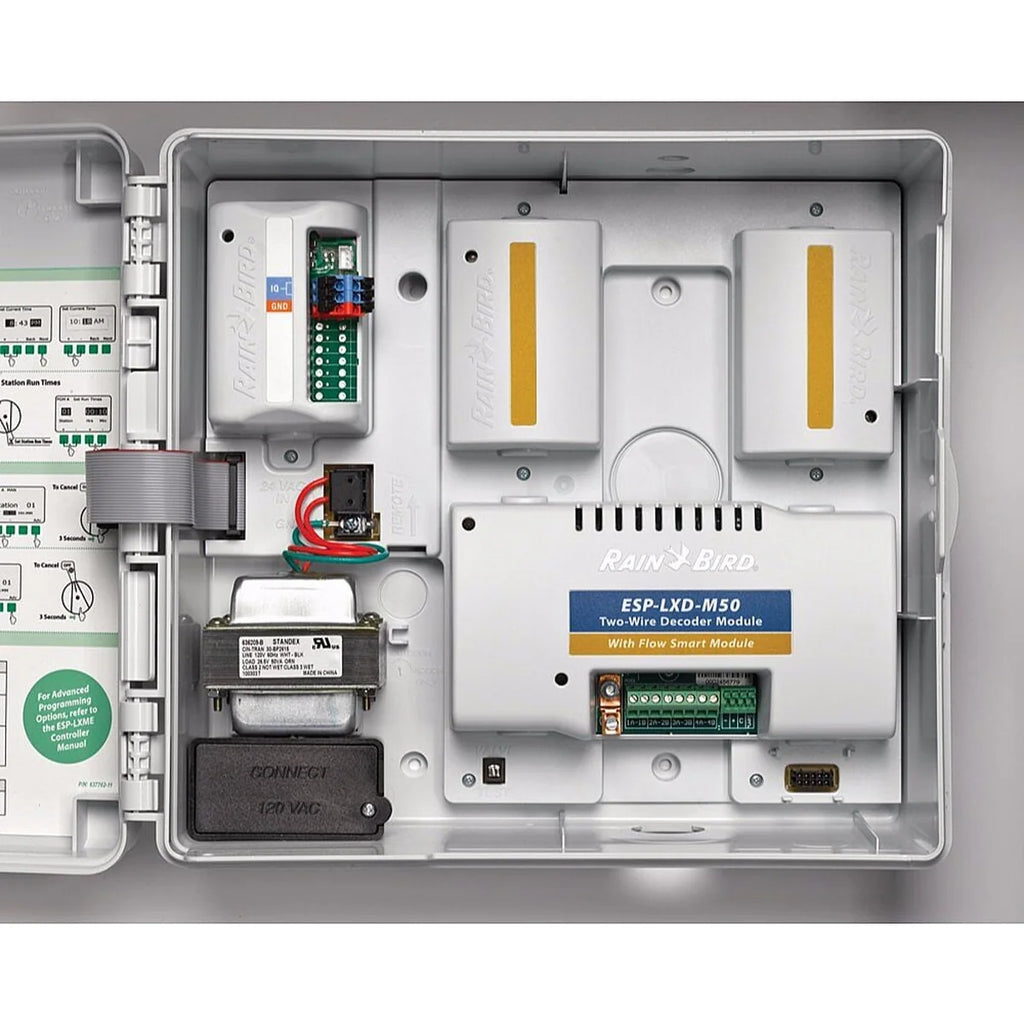

  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 9
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 3
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 8
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 6
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 1
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 5
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 4
  • Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International — image 7

Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International

Rain Bird

Controllers & Timers ESP-LXD Decoder Controllers

Rain Bird IESPLXD ESP-LXD 50-Station 2-Wire Decoder Controller, 230 VAC, International

SKU: IESPLXD
Warranty 2 years
Dhs. 3,519.00
In stock

Product summary

The IESPLXD is a 50-station, 230 VAC international two-wire decoder controller expandable to 200 stations for large commercial irrigation systems.

Key features

  • 50-station standard capacity expandable to 200 stations with ESPLXDSM75 modules
  • Two-wire decoder architecture reduces field wiring
  • Built-in flow management
  • Four sensor inputs: one wired plus up to three decoder-managed inputs
  • Supports up to five flow sensors
  • Compatible with Rain Bird IQ communications and IQ4 central control
  • Six user-selectable languages

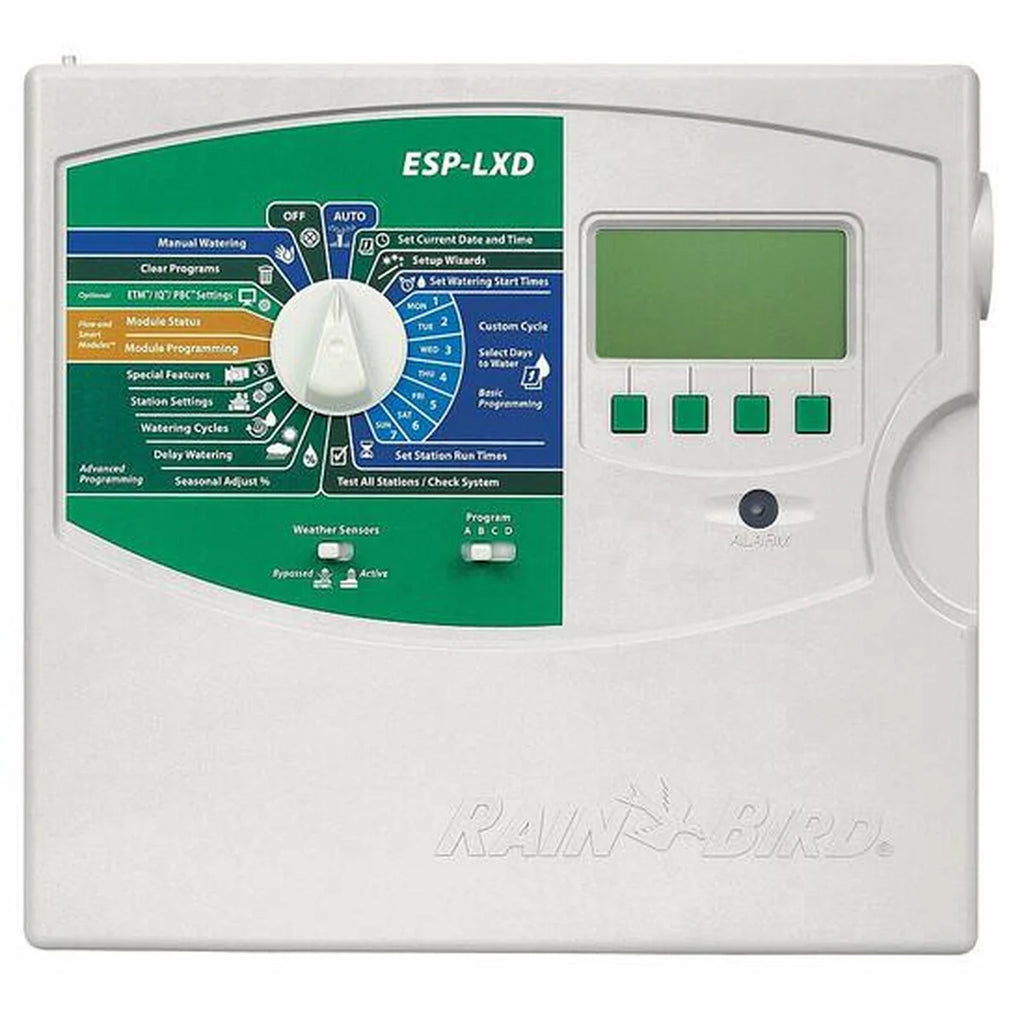

  • Removable front panel programmable under battery power

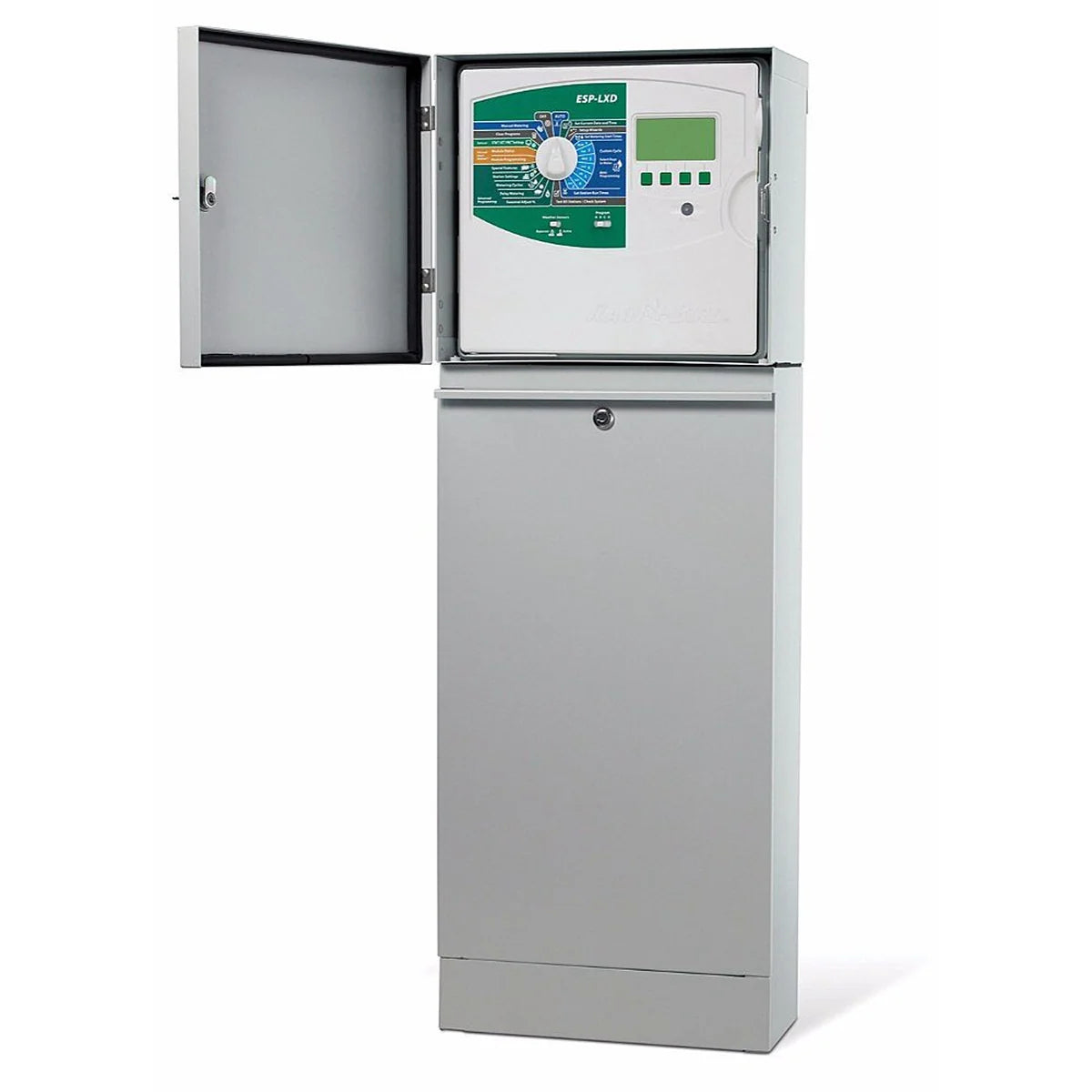

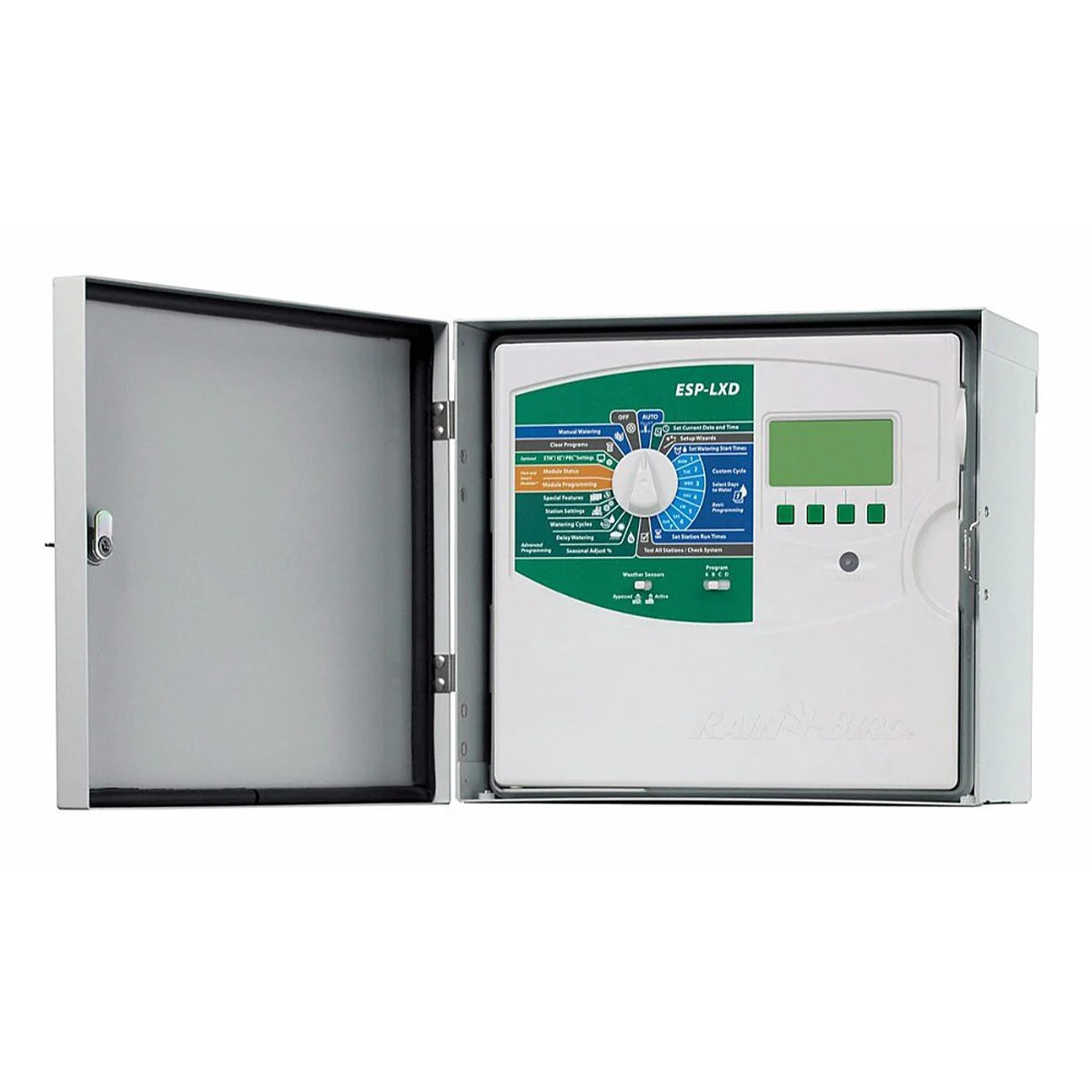

  • Locking UV-resistant wall-mount enclosure
  • Four independent programs with eight start times per program

Complete technical details
  • SKU: IESPLXD
  • Manufacturer Model: IESPLXD
  • Base Stations: 50
  • Maximum Stations: 200
  • Input Power: 230 VAC ±10%, 50/60 Hz
  • Station Run Time: 0 minutes to 12 hours
  • Seasonal Adjustment: 0% to 300%
  • Programs: 4 independent programs
  • Start Times: 8 per program
  • Multi-Valve Capacity: up to 2 solenoids per station; up to 8 solenoids and/or master valves simultaneously
  • Dimensions: 364 x 322 x 140 mm (14.32 x 12.69 x 5.50 in)
  • Certifications / Rating: CE, IPX4 and other market-specific approvals

Best used for
  • Large commercial irrigation sites
  • Two-wire decoder installations
  • International 230 VAC projects
  • Sites requiring flow sensing and central-control integration

Compatibility and notes
  • Expand with compatible ESPLXDSM75 75-station modules.

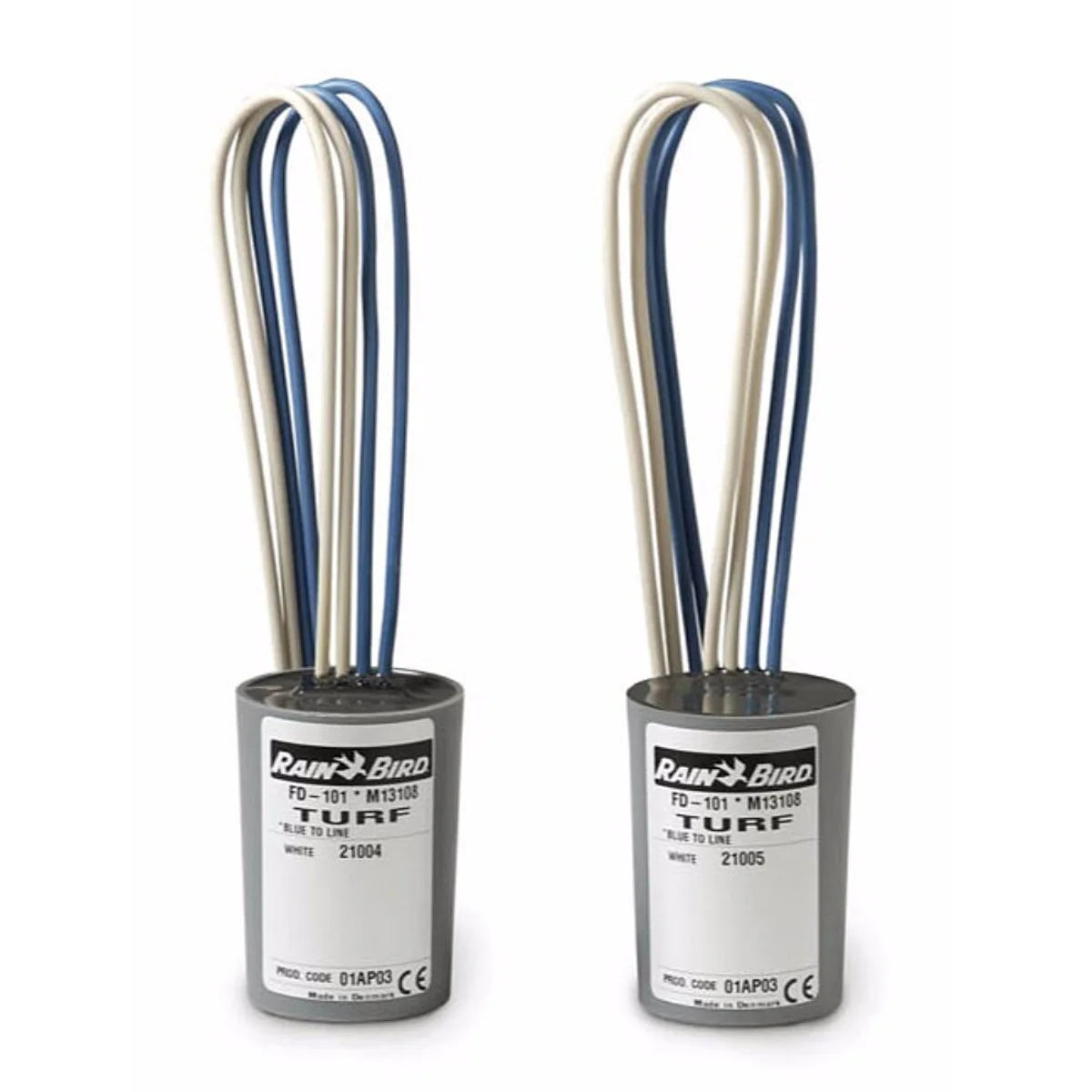

  • Use compatible Rain Bird FD-series field decoders on the two-wire path.
  • Supports SD-211TURF sensor decoders and LSP1TURF line-surge protection.
