Rain Bird WPSK20 WC20 Series Direct-Bury Wire Connector, 22-8 AWG, 600 VAC

Warranty 2 years
Dhs. 45.54
In stock

Product summary

The WPSK20 is Rain Bird’s WC20 Series sealed direct-bury connector system for irrigation control wiring from 22 AWG to 8 AWG and up to 600 VAC.

Key features

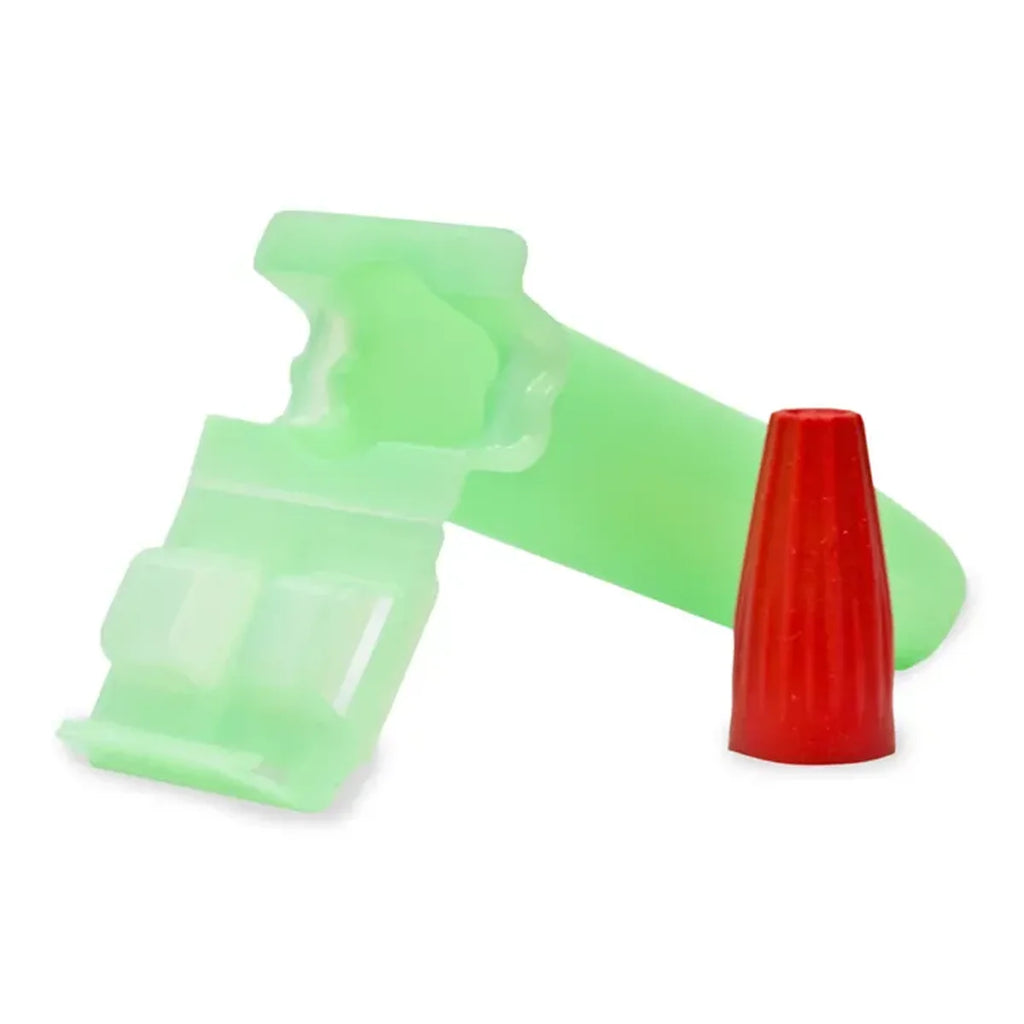

  • Red wire nut and direct-bury silicone-filled tube
  • Built-in strain relief helps prevent wires from pulling apart
  • Waterproof silicone grease protects against corrosion
  • UV-resistant materials
  • Suitable for standard controllers, valve boxes, soil-moisture sensors and two-wire decoder systems
  • UL 486D listed sealed wire connector system

Complete technical details

  • SKU: WC20
  • Manufacturer Model: WPSK20
  • Wire Range: 22 AWG to 8 AWG
  • Maximum Voltage: 600 VAC
  • Maximum Operating Temperature: 105°C (221°F)
  • Silicone Sealant Temperature Range: -43°C to 204°C (-45°F to 400°F)
  • Certification: UL 486D

Best used for

  • Valve-box wire splices
  • Two-wire decoder systems
  • Controller, valve and sensor field wiring
  • Direct-bury irrigation electrical connections

Compatibility and notes

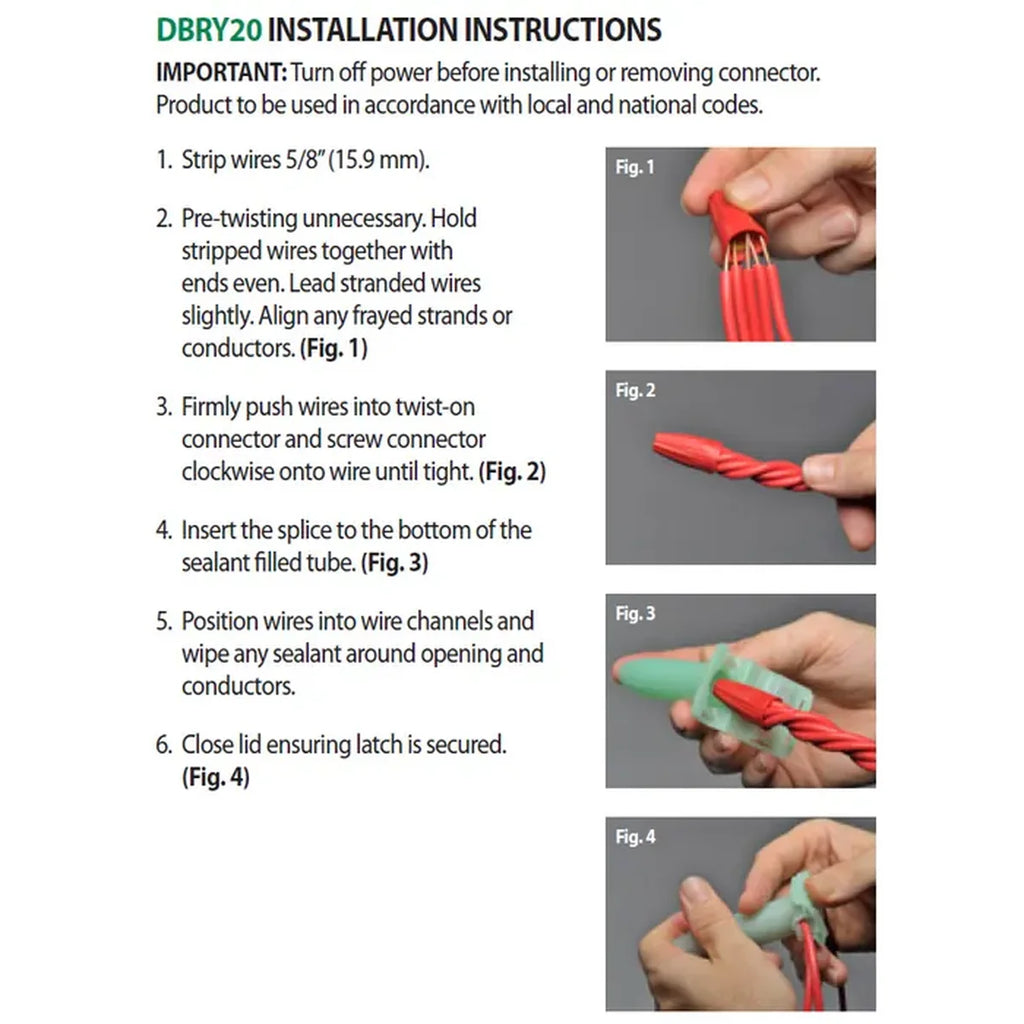

  • Install the wire nut and silicone-filled tube as a complete sealing system.
